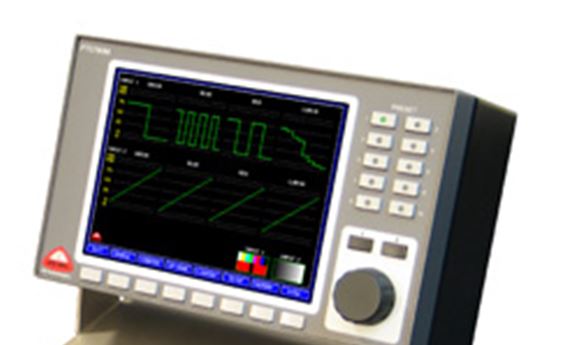

DK TECHNOLOGIES DISPLAYS NEW HD/SD WAVEFORM MONITOR

LAS VEGAS - At NAB, Copenhagen, Denmark's DK-Technologies (www.dk-technologies.com) launched a new, versatile waveform monitor. The DK PT0760 serves as four different HD/SD waveform monitors in one box.

The PT0760 features four separate auto-sensing HD/SD inputs that allow for the simultaneous display of four individual waveform monitors, showing G, R, B, Y, Cb, Cr and luminance. It also has a quad splitter that enables the user to view four simultaneous displays on a single screen, either external or internal. A built-in rasterizer allows all of the functions of the PT0760 to be seen on an SD or HD monitor, while retaining the functionality of the built-in monitor as a control panel.

The unit's HD/SD internal video test signal generator has an independent output and provides test signals in 1080p, 1080i, 720p and SD formats. The test signals include several color bar signals, color black, SDI checkfield and monitor alignment signals.

There are 11 user presets, user definable gamut error settings and 10 user definable soft keys for fast set-up. Horizontal and vertical zoom is via a built-in jogwheel and the unit also has internal memory. The lightweight PT0760 is suitable for camera control units too.
